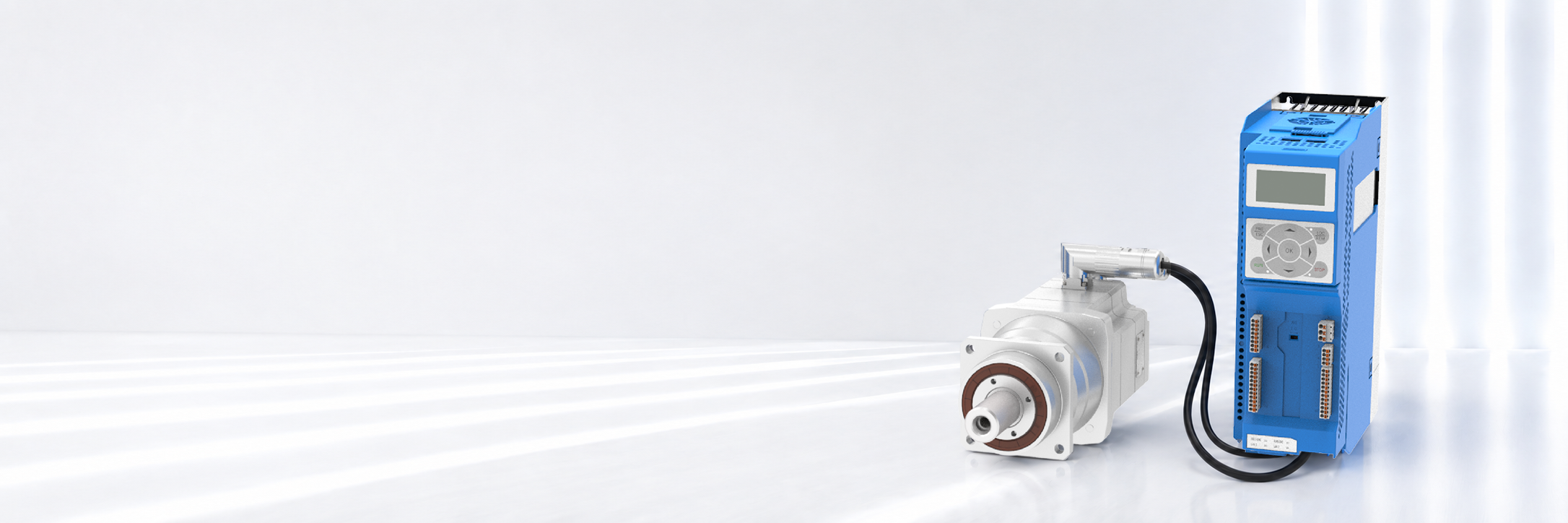

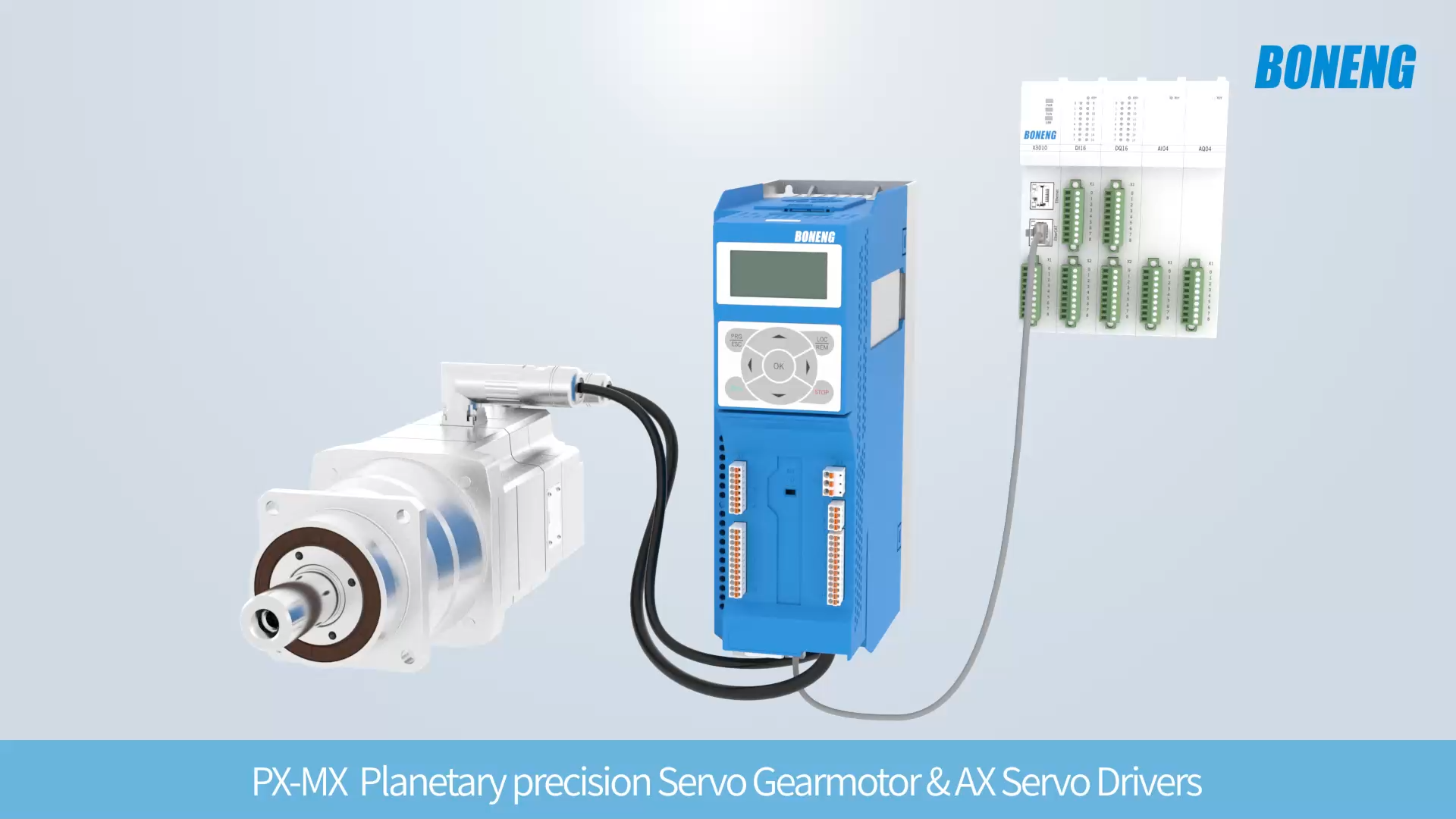

PX-MX Planetary Precision Servo Gearmotor & AX Servo Drivers
The PX series precision planetary servo reducer adopts high-precision hardened helical gears with grinding machining, delivering sustained precision and ideal for high-end precision applications. Featuring low backlash and low operating noise, its highly modular and long-service-life design cuts maintenance costs. The MX servo motor adopts a direct-coupled compact structure with high protection class, high efficiency and strong overload capacity. Equipped with a 23-bit absolute encoder, it achieves seamless integration and perfect coordination with Agile series drives.
Product Features
- High tooth surface hardness, high precision, low noise, low return clearance.
- Direct servo motor, compact structure, high power density.
- The highly modular design enables faster production and logistics cycles.
- High reliability and long design life can effectively reduce your use and maintenance costs.
- Servo motor not only has a strong compact structure and high protection grade, but also has high efficiency, high overload bearing capacity and other characteristics;Its excellent radial runout quality and subtle torque fluctuation can realize high quality workpiece surface machining.
- Combined with boneng Agile series drive to form a powerful servo system, can achieve seamless integration, perfect coordination.
Design of geared motor
- Transmission stage: 1 stage or 2 stage.

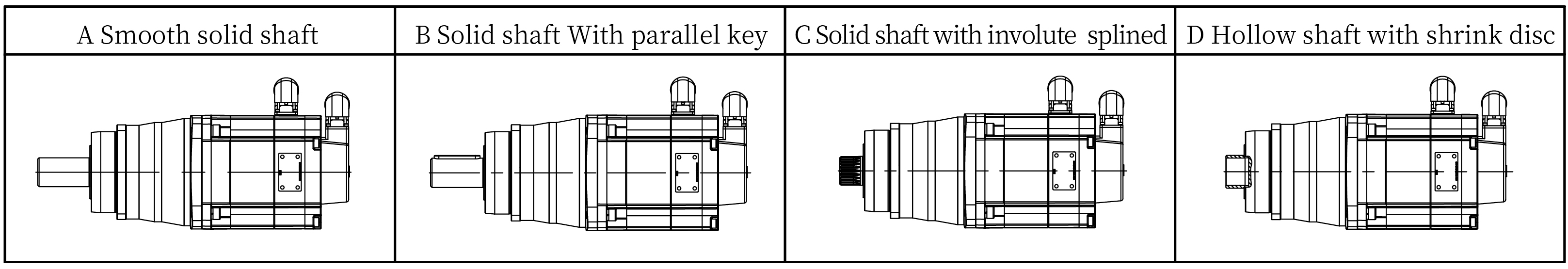

- Output form PX…S-MX：

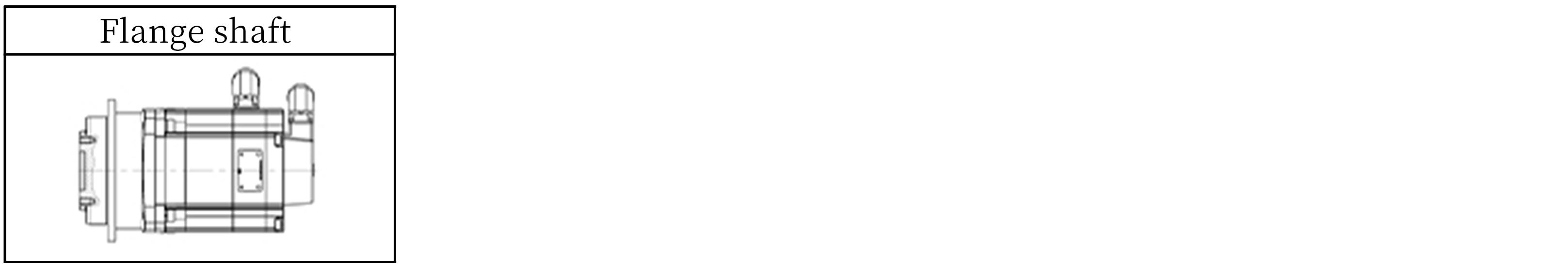

- Output form PX…T-MX：
- Mounting Mode：Horizontal installation、Vertical mounting
Technical data
| Gearbox | Servo Motor | Servo Drivers | |
|---|---|---|---|
| Size | PX102S~PX107S / PX202S~PX207S PX102T~PX107T / PX202T~PX207T | 28~100 | AX-PM26/CM55/OP25 |
| Output Torque | 22 N·m~1900 N·m | 0.8 N·m~48 N·m | / |
| Ratio | 3~100 | / | / |
| Input Power | 0.38 kW~10.06 kW | 0.38 kW~10.06 kW | 0.75 kW~15 kW |
| Rated Current | / | 1.2A~19.6A | 1.25A~18.71A |
AX Servo Drives
AX precision series servo drives are modular servo drives designed for high-performance servo applications，it can be adapted to MX series servo motor to complete accurate servo control, and can also be adapted to asynchronous motor to complete asynchronous servo control.

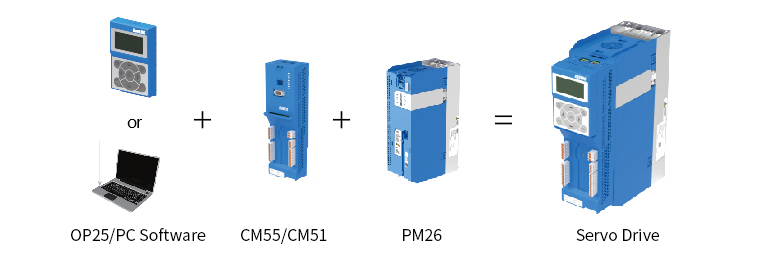

AX series servo driver consists of three parts:
Servo Drive Features
- PROFINET and EtherCAT communication supported, just choose different control modules;
- PROFINET servo supports RT and IRT applications;
- High-precision 23-bit absolute value encoder used for high control precision;
- 380VAC voltage level design, eliminating additional configurations such as transformers;
- Fast screw-free control terminals, convenient for wiring, debugging and maintenance;
- Abundant IO interfaces and optional Bi-direction control terminals.
Servo Drive Technical data
| Control module | AX-CM55-PA-PE(Connecting PROFINET communication devices, |
|---|---|
| AX-CM55-EA-PE(Connecting EtherCAT communication devices) | |
| AX-CM51-PN-PE(Connecting PROFINET communication devices) | |
| Power module input voltage | 380～480V 3AC ±10% |
| Power module input frequency | 47～63Hz |
| Overload capacity | Can bear 3 times of overload for 3s when 30s periodic impact load applied. |
| Protection level | IP20 |
