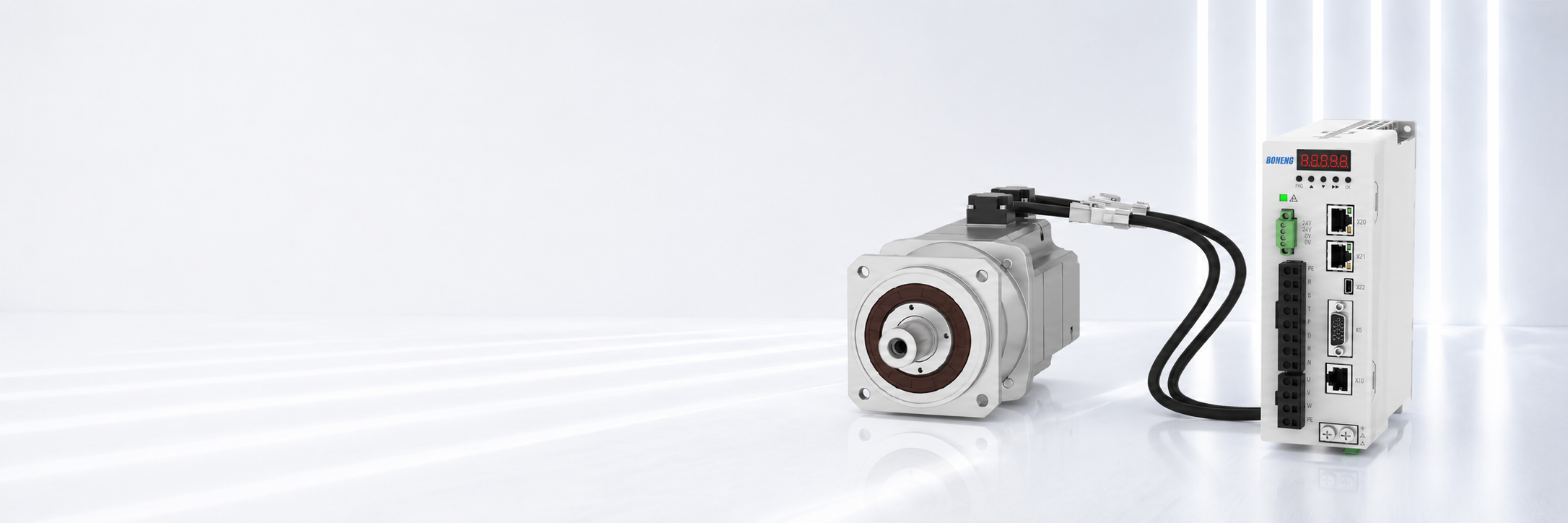

PN...MN Planetary Current Servo Gearmotor & AN Servo Drivers

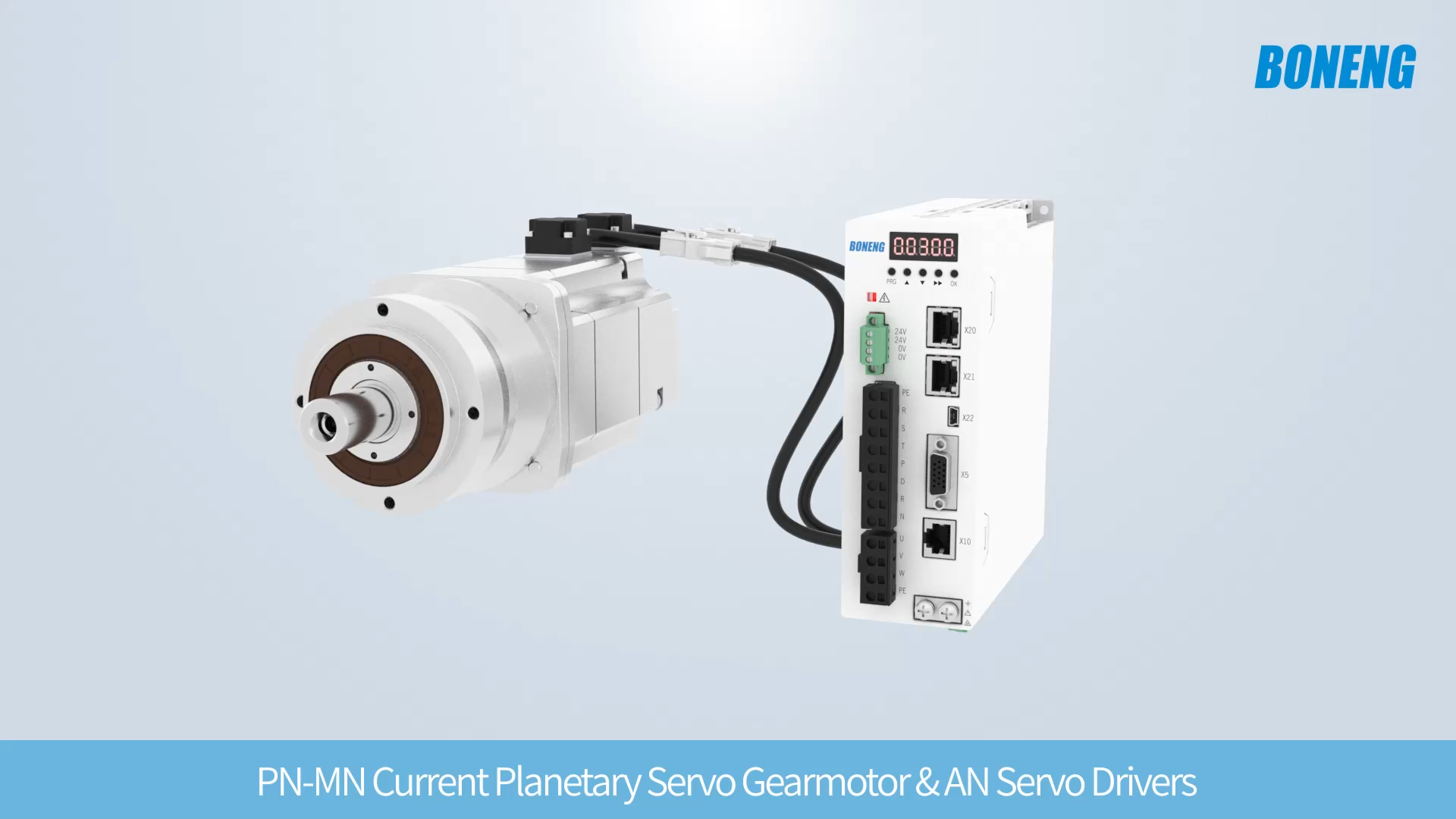

Product Features
- High precision, low noise, low return clearance.
- Direct servo motor, compact structure, high power density.
- The highly modular design enables faster production and logistics cycles.
- High reliability and long design life can effectively reduce your use and maintenance costs.
- Servo motor not only has a strong compact structure and high protection grade, but also has high efficiency, high overload bearing capacity and other characteristics;
- Its excellent radial runout quality and subtle torque fluctuation can realize high quality workpiece surface machining.
- Support high precision 23-bit absolute encoder, high control accuracy.
- Support STO safe torque turn-off function, more secure equipment.
- 380VAC voltage class design eliminates additional configuration such as transformers.
- Support Boneng DriveSoft upper computer software, debugging more convenient.
Design of geared motor
- Transmission stage: 1 stage or 2 stage.

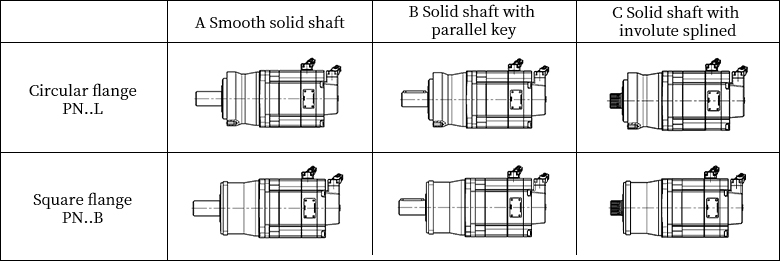

- Output form：
- Mounting Mode：Horizontal installation、Vertical mounting
Technical data
| PN Gearbox | MN Servo Motor | |
|---|---|---|
| Size | PN101L~PX105L / PN202L~PN205L PN101B~PX107B / PN202B~PN207B | 28~80 |
| Output Torque | 7 N·m~1900 N·m | 0.9 N·m~19 N·m |
| Ratio | 3~100 | / |
| Input Power | 0.28 kW~3.98 kW | 0.28 kW~3.98 kW |
| Rated Current | / | 0.9A~8.1A |
AN Series Servo Drives | 0.75kW | 1.5kW | 3kW | |
Main source power | Input voltage | 380V~480VAC, ±10% | ||
Input frequency | 47Hz ~63Hz | |||
Continuous output current(A) | 1.9 | 5.3 | 12.3 | |
Transient overload capacity | Can bear 3 times of overload for 0.3s when 10s periodic impact load applied. | |||
Control power supply | 24VDC,±10% | |||
Protection level | IP20 | |||
Ambient temperature | -20°C~+40°C:Constant power，+40°C~+55°C:Power reduction | |||
Built-in brake resistance | Built-in(100Ω/80W) | Built-in(50Ω/80W) | ||
Digital inputs | 5 COM type digital input | |||
Digital output | 3 channels OC form digital output | |||
Show | 5 digit LED display | |||
Debug | Debugging via USB and DriveSoft software | |||
