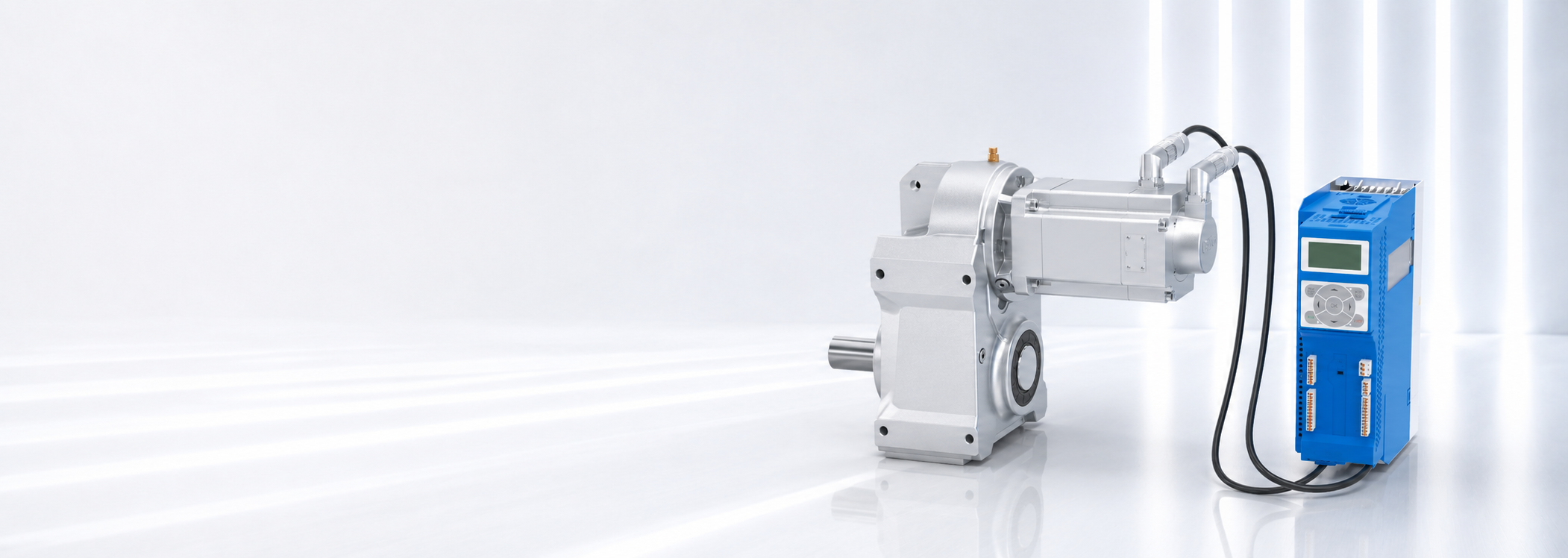

F-MX Parallel-axis Helical Servo Gearmotor &AX Servo Drives
Product Features
- High modular design, biomimetic surface with owned intellectual property right.
- Adopting integral casting box body，small volume，smooth transmission，low noise.
- Flexible installation form，suitable for a wider range of working conditions.
- High carrying capacity and reliable operation.
- High efficiency and save power.
- Save cost and low maintenance.
- Servo motor not only has a strong compact structure and high protection grade, but also has high efficiency, high overload bearing capacity and other characteristics;Its excellent radial runout quality and subtle torque fluctuation can realize high quality workpiece surface machining.
- Combined with boneng Agile series drive to form a powerful servo system, can achieve seamless integration, perfect coordination.
Design of geared motor
- Transmission stage: 2 stage or 3 stage.

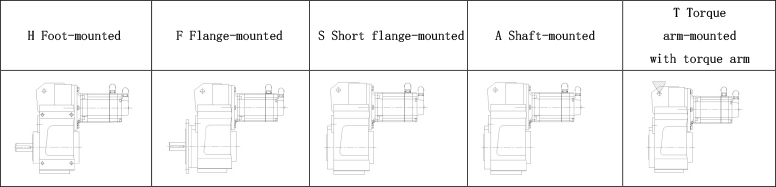

- Mounting Mode：
- Output shaft: Solid shaft, hollow shaft (parallel key, shrink disk, involute spline)
Technical data
| Gearbox | Servo Motor | Servo Drivers | |
|---|---|---|---|
| Size | F202～F215 C300~C316 |
28～180 | AX-PM26/CM55/OP25 |
| Output Torque | 5.1 N·m～13563N·m | 0.7 N·m～478 N·m | / |
| Ratio | 4～200 | / | / |
| Input Power | 0.28 kW～103 kW | 0.28 kW～103 kW | 0.75 kW～103 kW |
| Rated Current | / | 0.7A～166A | 1.25A～178A |
AX Servo Drives
AX precision series servo drives are modular servo drives designed for high-performance servo applications with a unified control module, and composed of a power module adapted to different power servo motors and some optional accessories, the flexible modularization provides users with richer options for system design and application. AX precision series single-axis servo drive consists of three parts:
Operation panel (OP25) or PC debugging software BonnegDrivesoft:
operation panel or PC debugging software can provide users with convenient and quick parameter setting methods, supports Chinese character display, more simple and understandable information feedback, and advanced oscilloscope detection and diagnosis functions.
Control module (CM55):
The control module provides users with a wealth of control interfaces, input and output terminals, analog signals, and communications, and through a variety of ways to control and monitor the connected motor.
Power module (PM26):
The book-type power module has a power range from 0.75kw-132kw, supports a variety of control modules, makes motor speed adjustment simple and flexible, and includes complete drive protection functions.
Features
- Modular design, flexible product combination;
- PROFINET and EtherCAT communication supported, just choose different control modules;
- Wide power range, covering from 0.75kW-132kW;
- High-precision 23-bit absolute value encoder used for high control precision;
- 380VAC voltage level design, eliminating additional configurations such as transformers;
- Fast screw-free control terminals, convenient for wiring, debugging and maintenance;
- Abundant IO interfaces and optional Bi-direction control terminals.
Technical data
01 User-Friendly
| Power Module Input Voltage | AX-CM55-PA-PE (For Connection to PROFINET Communication Devices) |
|---|---|
| AX-CM55-EA-PE (For Connection to EtherCAT Communication Devices) | |
| Power Module Input Voltage | 380 ~ 480V 3AC ±10% |
| Power Module Input Frequency | 47 ~ 63Hz |
| Drive Overload Capacity | Under a periodic impact load every 30 s, the drive can achieve 3× overload for 3 s. |
| Drive IP Rating | IP20 |
02 Power Module Technical Specifications
| PM26 Power Module General Specifications | |
|---|---|
| Input Voltage | 380...480V 3AC ±10% |
| Input Frequency | 47 ~ 63Hz |
| Overload Capacity | Under a periodic impact load every 30 s, the drive can achieve 3× overload for 3 s. |
| IP Rating | IP20 |
