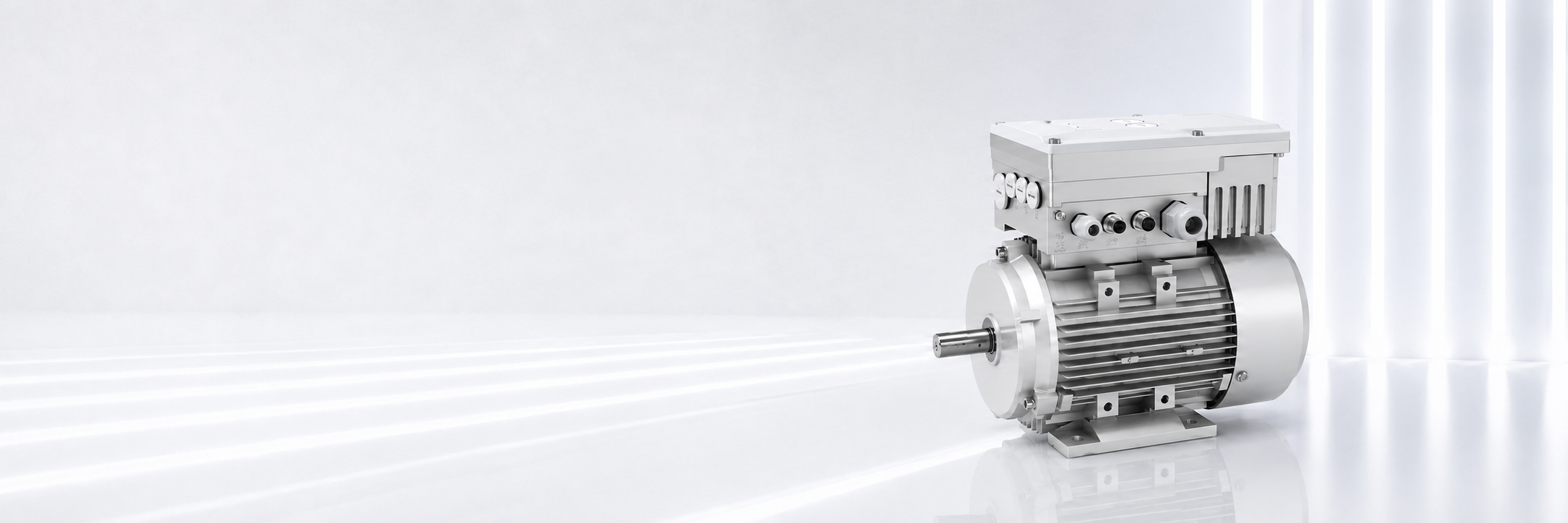

Variador de frecuencia distribuido para motor MP

01 Fácil de usaress

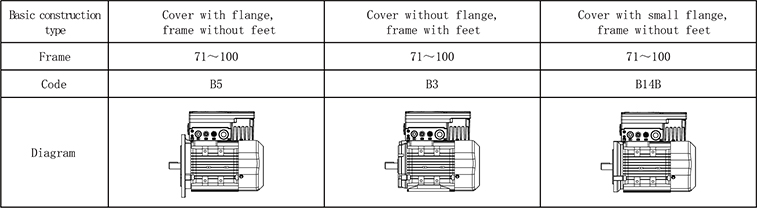

Flexible installation	With multi-direction inlet line, multi-directional installation, matching customer environmental requirements
Parameters Coping	Debugging one drive and coping parameters to another drive through PC software.
Parameters grouping	Reasonably function grouping, simple and intuitive parameters, which are easily to be understood.
Supporting Boneng Drivesoft	It's easy to debug through various functions, such as parameters display and modify, virtual oscilloscope, parameters modification list.
Coated circuit board, moisture-proofwet anti-corrosion shelle	Adapt to harsher environments

02 Calidad fiable

Optimal heat dissipation design	Longer service life
All frequency converters are tested at full load before leaving the factory	High reliability
Complete drive protection function	Lean running
Standard configuration with coated circuit board	Extension of service life

03 Rendimiento superior

Process Proportional Integral (PID) controller	No external controller required
Automatic identification of motor models	Develop the full potential of the motor
With load and speed	Light load with high speed, heavy load will limit the speed, thereby improving work efficiency
Tracking startup (tracking freely rotating motors)	Avoid start-up shocks
Supports parameter interconnection	The parameters can be interconnected to the P group, which can realize the selection of the start and stop source, the speed source, etc. from the P group parameters, which is extermely flexible
Support for free function modules	Support logic, arithmetic operation, delay, data selection, use of special working conditions parameter setting

04 Ahorro de costes

Se pueden ahorrar costes al eliminar la necesidad de armarios y largos cables de motor, y el sistema está diseñado para tener un buen aspecto.

Rated power	0.25kW~3kW
Rated voltage	380V~480V
Rated frequency	50Hz/60Hz
Rated input current	2.9A~10.1A
Rated output current	2.2A~7.7A

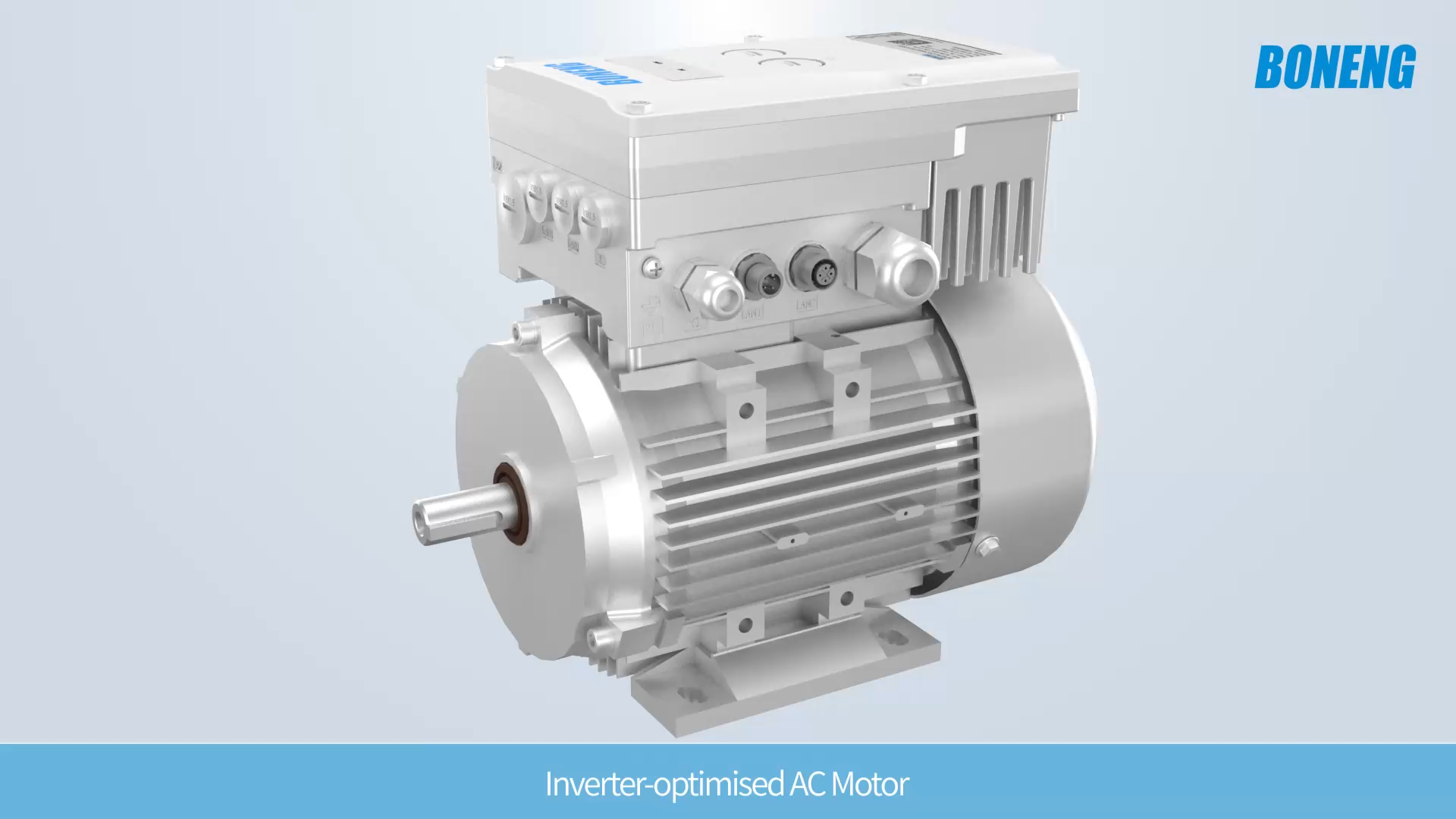

MP Inverter-optimised AC Motor
Functional description		Specification
Basic function	Control mode	V/F ，SVC
	Overload capacity	1.2 times rated output current 1min, 1.5 times rated output current 3sec, cycle 10min
	Torque increasing	Manual torque boost
	V/F control curve	Straight line, multipoint, 1.5 power, square, completely separated
	Acceleration and deceleration curve	Two sets of S-curves, freely switchable, acceleration and deceleration time range 0.0-1000.0s
	Multi-stage speed	8-stage constant speed, which can be switched by interconnection parameters
	Inching operation	Moving at a frequency: 0.0%~100.0%, Slope at: 0.0-1000.0s
	DCbraking	Braking time: 0.00s~100.00s, Braking current: 0.0% ~ 100.0%
	RPM track and start again	Realize smooth starting of rotating motor without impact
	Stall control in overcurrent and overvoltage	Automatically limit current and voltage during operation to avoid frequent tripping
	Process PID	Closed loop control system that can easily realize process quantities (such as pressure, temperature, flow, etc.)
Industrial bus	Communication bus	Modbus RTU
	Ethernet	EtherCAT
IO	DI	4 circuit, optocoupler isolation, support two-way input
	AI	1 circuit, 0~10V
	Output power	+24VDC,40mA maximum
		+10VDC, 40mA maximum
	Local communication port	RS485 communication, special port
		Support upper computer debugging and software update
Others	Degree of protection	IP20
	Temperature	20℃～+40 ℃
