YZ Three-phase Asynchronous Motor For Crane and Metallurgical Applications
Product Features
- Flexible and variable module combination brings simple and rich choices to users.
- Can reliable operation under all working system, Class A and Class B common power frequency grid and inverter power supply with superior adaptability.
- Advanced magnetic circuit design and finite element analysis ensure product consistency and reliability.
- R-level noise vibration, B-class or E-class temperature rise, and IE3 efficiency grade greatly improve product life.
- Advanced automated electric processing production line, VPI dip coating, demanding internal comprehensive experiment and inspection to ensure high performance products for users.
- The idea of standardization, modularization and multi-regional service can achieve faster delivery.
- Extend the product life cycle and maintenance-free design concept, so that the cost performance of our products throughout the life cycle can be highlighted.
- No additional maintenance is required in addition to the seals during the product life cycle.

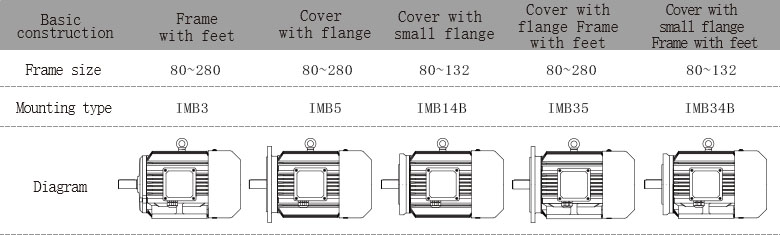

Product type
Technical data
| YZ Three-phase Asynchronous Motor For Crane and Metallurgical Applications | |
|---|---|
| Frame Size | 80~280 |
| Output torque | 3.7N·m~580N·m |
| Power | 0.37kW~90kW |
| Frequency/Voltage/Conn. |
50Hz 220V△/380VY 60Hz 440VY 60Hz 220V△/380VY 50Hz 230V△/400VY 60Hz 460VY 60Hz 380V△/660VY 50Hz 240V△/415VY 60Hz 480VY 50Hz 380V△/660VY 60Hz 440V△ 50Hz 400V△/690VY 60Hz 460V△ 50Hz 415V△/720VY 60Hz 480V△ |
| Motor poles | 4、6 |
