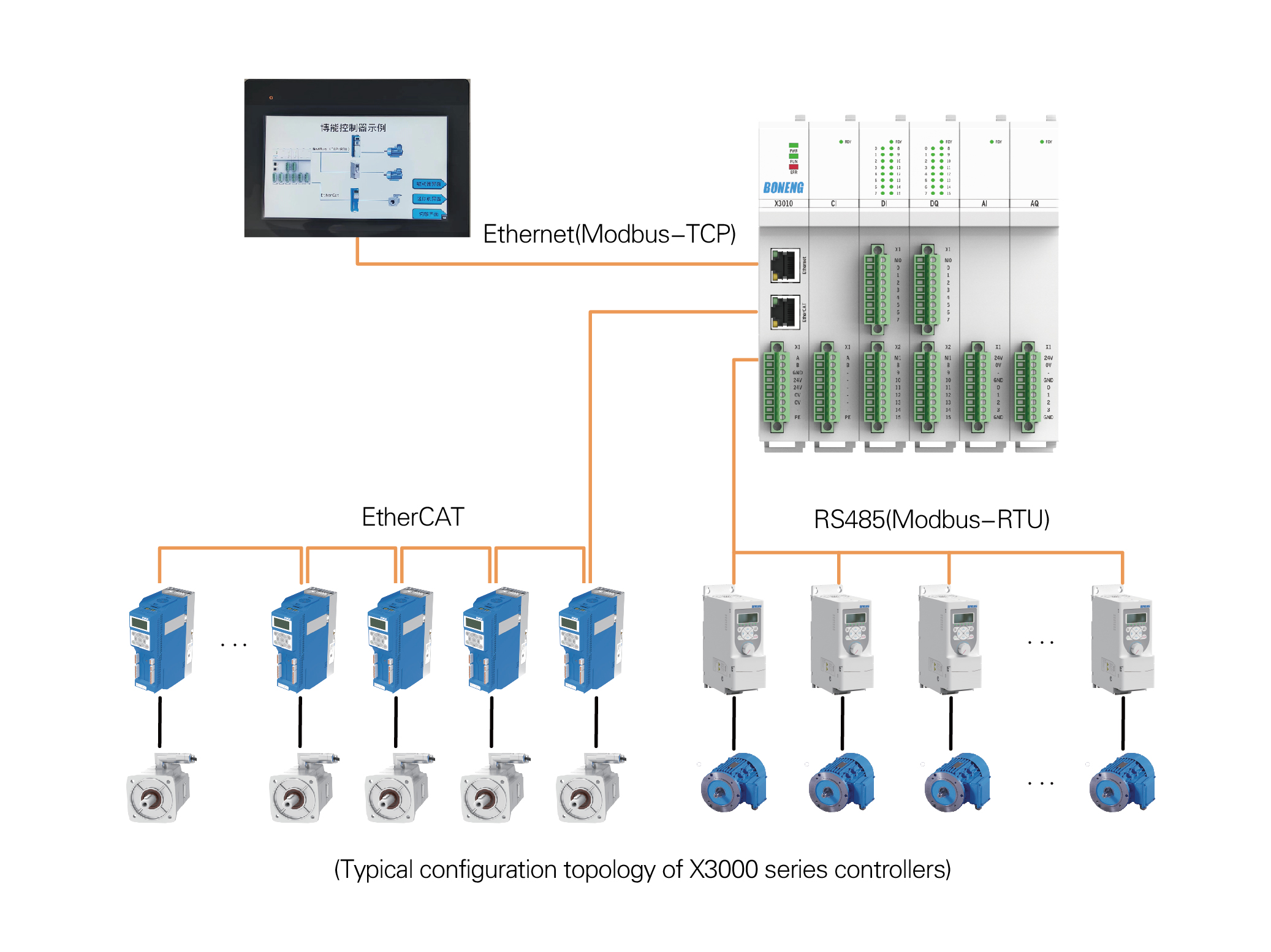

X3000 series motion controller is a modular controller independently developed by Boneng ,This controller supports one EtherCAT master station，One Modbus-TCP master/slave station, two Modbus-RTU master/slave stations, and a maximum of 1+15 local expansion IO modules，the maximum number of digital IO points is 240, the maximum analog channel is 60, modular local extension IO has DI, DQ, Al, AQ, CI five types, can meet most of the automation equipment.
The ordering codes of Boneng X3000 Motion Controller CPU modules are shown below.
| Ordering Code | Description |
|---|---|
| X3050-EC-00-S | Motion Controller supporting EtherCAT multi-axis positioning, electronic gear synchronization, electronic cam synchronization, and Motion functions. |
The Boneng X3000 Series local expansion I/O modules include five types. The Modbus communication module supports a maximum expansion of one module, while DI, DQ, AI, and AQ modules support up to 15 modules each, allowing flexible configuration based on application requirements.
| Ordering Code | Description |
|---|---|
| X3000-DI-16-1 | Digital Input Module, 16 Inputs |
| X3000-DQ-16-3 | Digital Output Module, 16 Outputs, Relay Type |
| X3000-AI-04-3 | Analog Input Module, 4 Channels, Voltage/Current Input |
| X3000-AQ-04-3 | Analog Output Module, 4 Channels, Voltage Output |
| X3000-CI-01-1 | Communication Interface Module, 1-Channel Modbus Interface |
