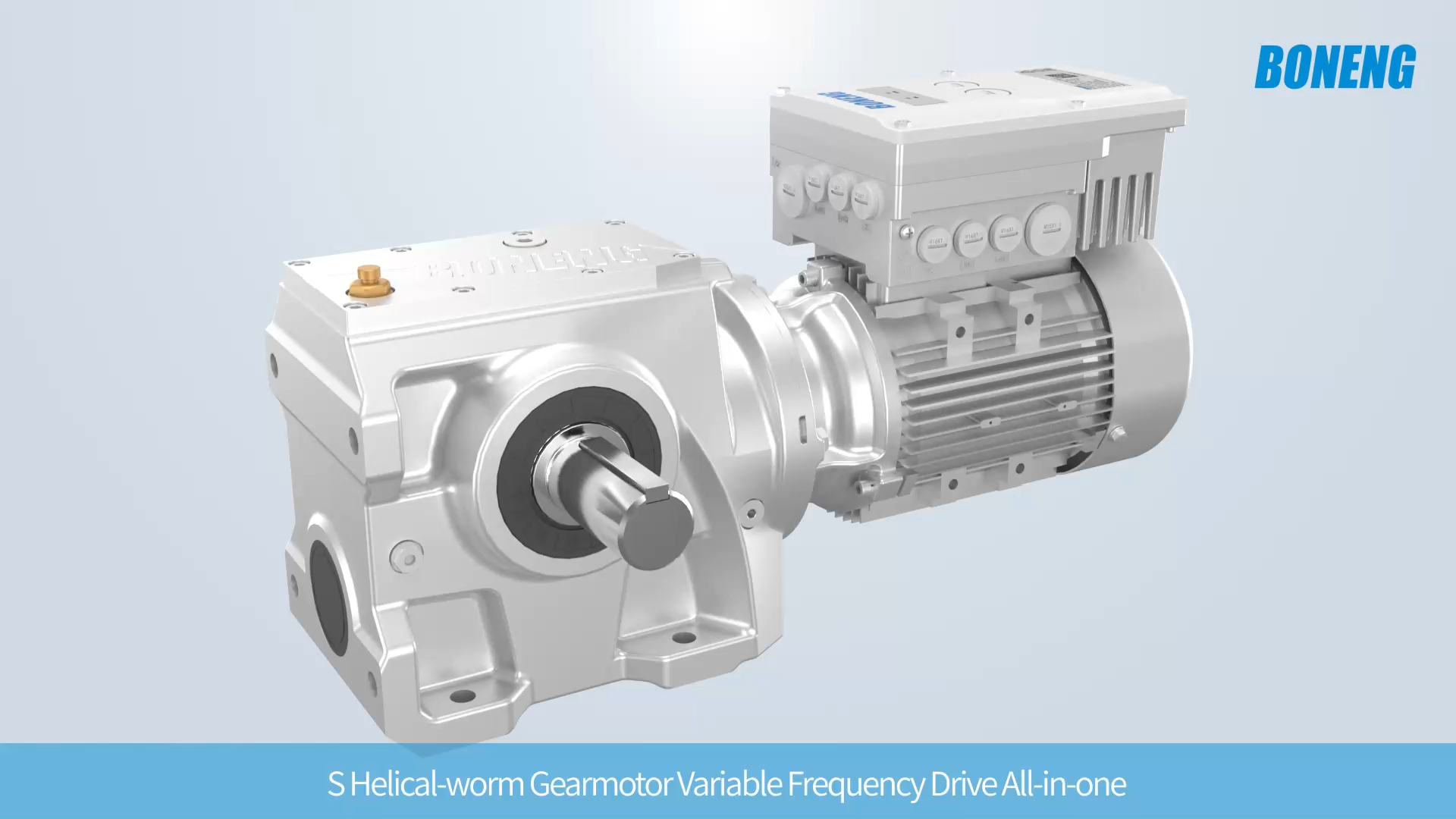

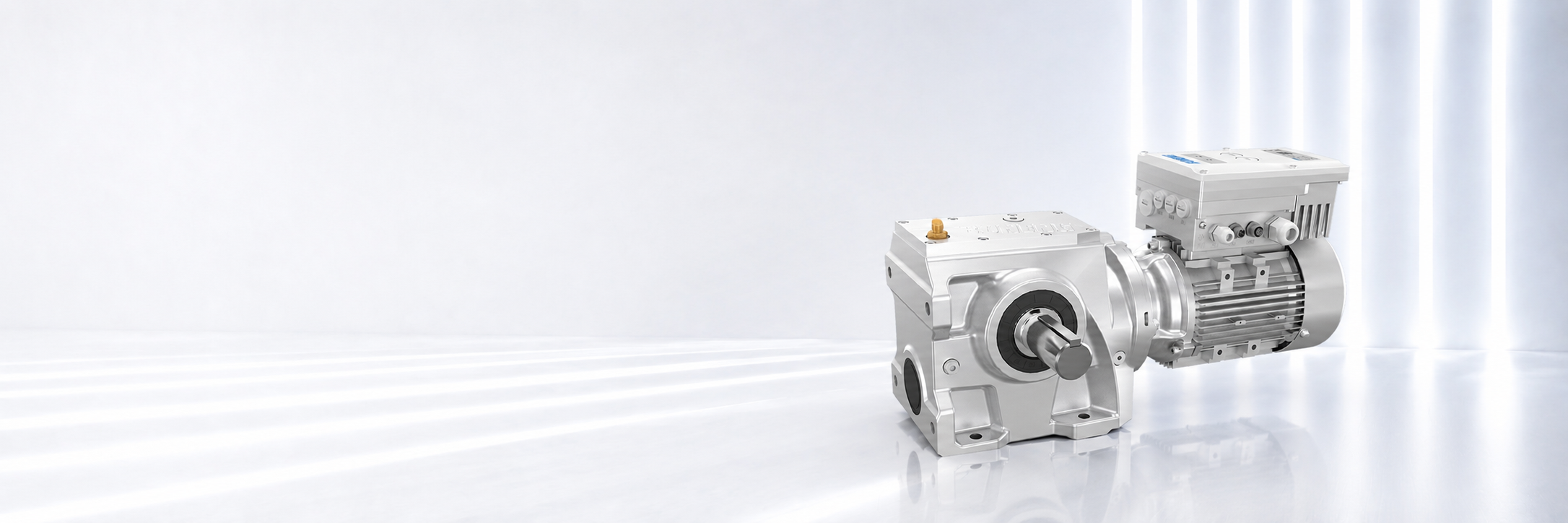

S Helical-worm Gearmotor Variable Frequency Drive All-in-one
Product Features
- Gearmotor variable frequency drive all-in-one with flexible and modular design, faster production and logistics cycles.
- Larger speed ratio coverage, meeting smaller and larger speed ratio transmission requirements, and wider application scenarios.
- The FEA design of the casting housing, which improves the running stability by 30% and effectively reduces the noise of the whole machine.
- High reliability and long design life can effectively reduce your use and maintenance costs.
- Support SVC(open-loop vector)control and VF control.
- Realize speed control.
- Support Modbus communication and EtherCAT communication.
- Support local upper computer connection.
Product type
- Transmission stage: 3-stage

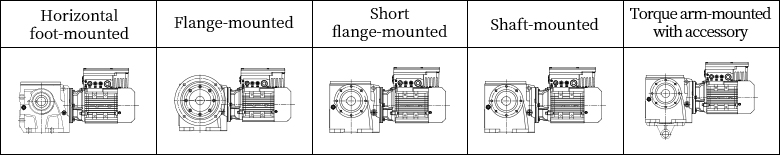

- Mounting type:
- Output shaft: Solid shaft, hollow shaft (parallel key, shrink disk, involute spline)
Technical data
| Size | S203～S208 |
|---|---|
| Output torque | 12N·m~2599N·m |
| Ratio | 4~180 |
| Input power | 0.25kW~3kW |
| Rated current | 2.2A~7.7A |
Main application industries
