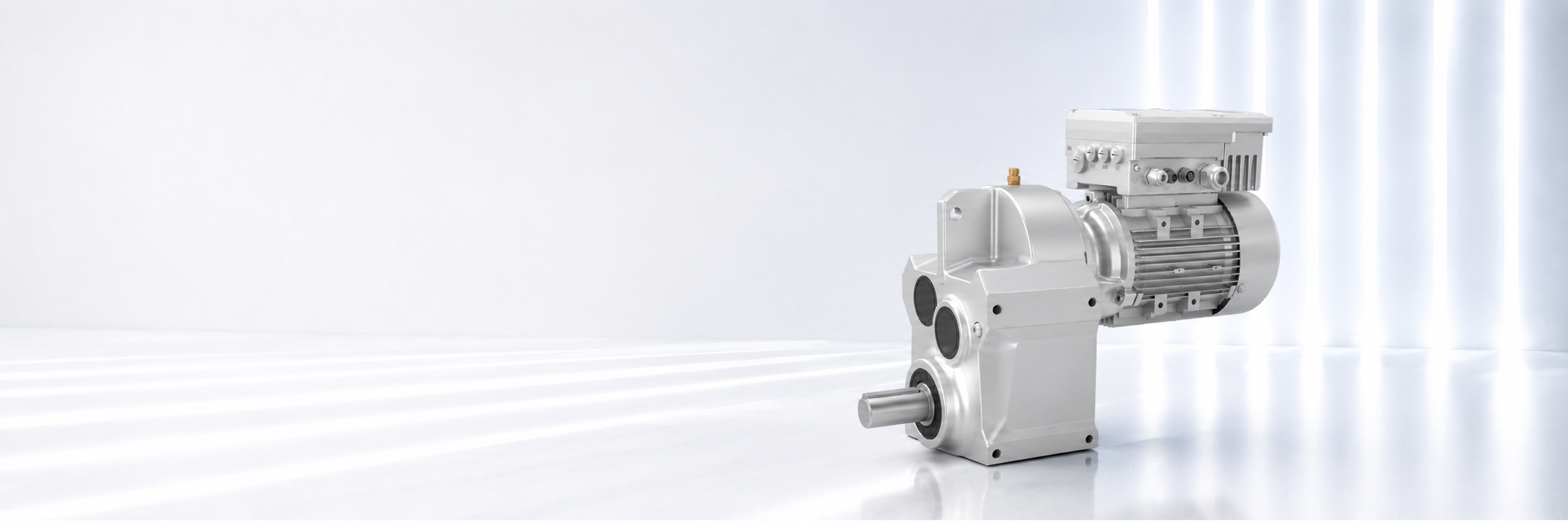

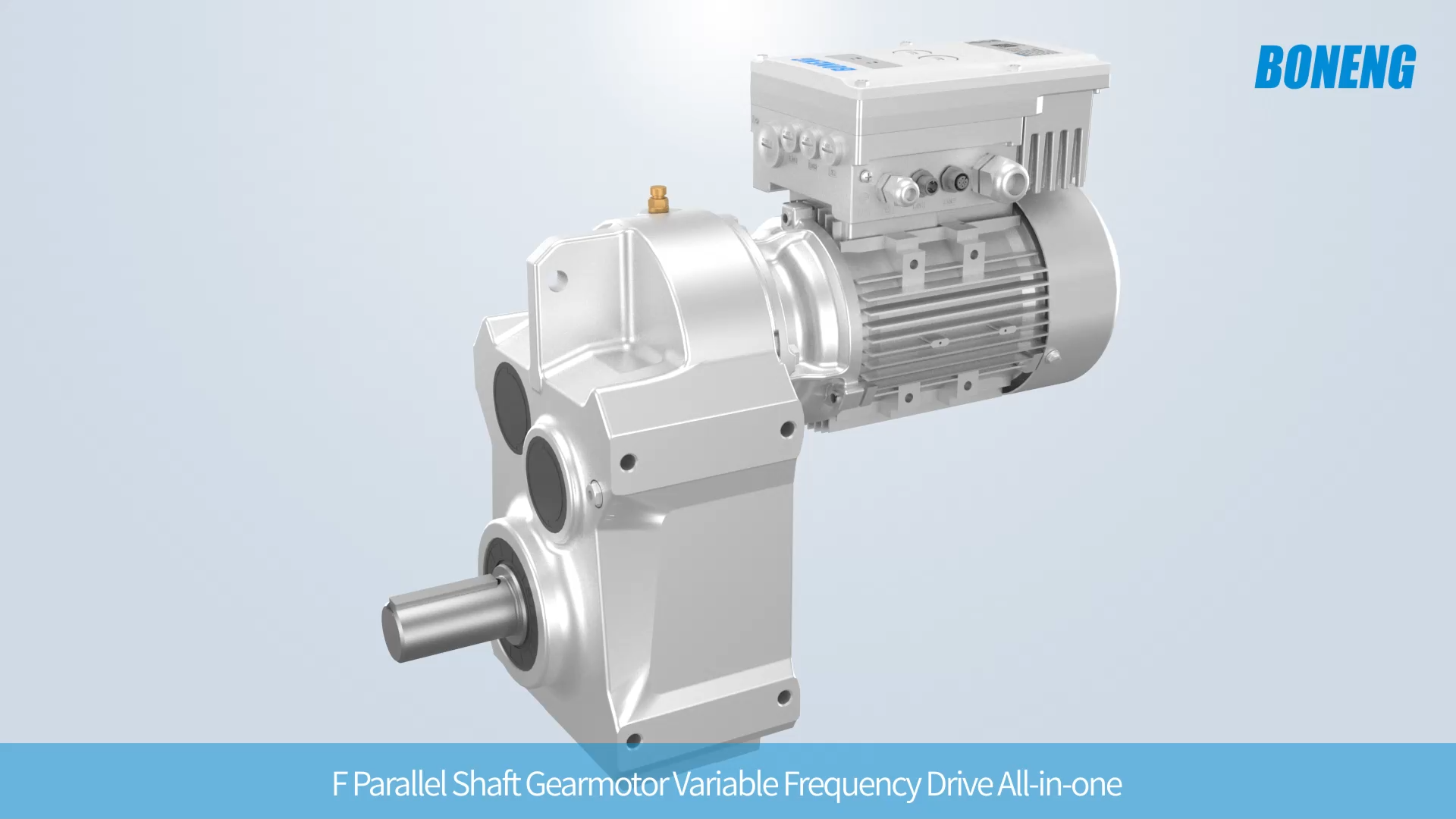

F Parallel Shaft Gearmotor Variable Frequency Drive All-in-one
Product Features
- High modular design, flexible mounting mode.
- Integrated casting housing,compact dimension,stable transmitting and low noise level.
- Perfect oil leakage preventing makes the good sealings and can be used in wide range of industry.
- Advanced gear grinding and modified profile, high loading support and more safe operation.
- Support SVC(open-loop vector)control and VF control.
- Realize speed control.
- Support Modbus communication and EtherCAT communication.
- Support local upper computer connection.
Product type
- Transmission stage: 3-stage

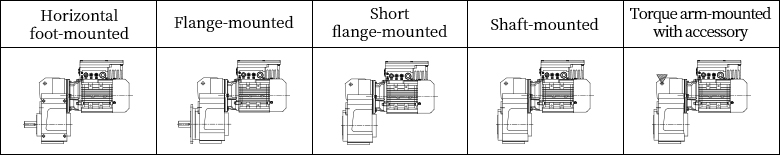

- Mounting type:
- Output shaft: Solid shaft, hollow shaft (parallel key, shrink disk, involute spline)
Technical data
| Size | F203~F208 F303~F308 |
|---|---|
| Output torque | 6.7N·m~3942N·m |
| Ratio | 4~200 |
| Input power | 0.25kW~3kW |
| Rated current | 2.2A~7.7A |
Main application industries
